CONNECT,

READ AND WRITE

IN JUST TWO CLICKS

EECLIP USB

serial eeprom programmer

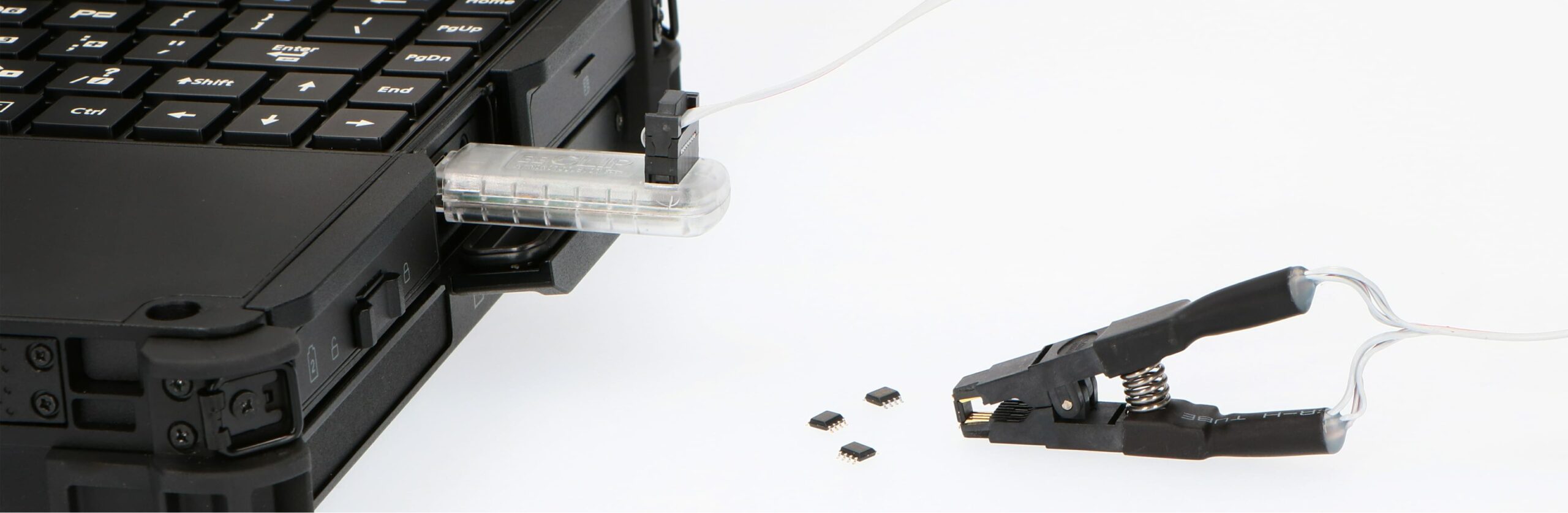

EECLIP is a serial eeprom programmer, which plugs into the PC’s USB 2.0 port and does not require an additional power supply.
Most serial eeproms (SPI, I2C OR IIC, Microwire) can be programmed with EECLIP, even eeproms with SOP8 package and adaptable cable.
It can be used with Windows XP, Windows Vista, Windows 7, Windows 10, Windows 11 both 32-bit and 64-bit versions, and can read and write the connected eeproms.
The software supports and automatically recognises more than 2000 different devices and automatically updates the EECLIP firmware.

Pin	Descripion
1	Data out
2	Write protect
3	Chip select
4	Grid
5	Clock
6	Pre
7	Data in
8	Vcc

Features

EASE OF USE

you can read or write a memory in just 2 clicks

POWERING

no external power supply is required. The EECLIP programmer supports devices with 3V or 5V voltage.

Autodetect

the software is programmed to recognise automatically the device

Editor Designation

you can use and connect to the EECLIP software most of the editing software (supporting .bin files) on the market /e.g. 010 Editor).

Connection cable

each cable is specific to a device category(e.g. with the 93 cable, one can operate SOP8 93xx devices with both 8 and 16 bits).

software update

the software is automatically updated via the internet.

supported devices

more than 2000 devices can be read and written in Autodetect functionality.

EECLIP software

Download and install EEClip Software

Name: EEClip
Version: 1.6
Manufacturer: Minitools

System Requirements

To install the EEClip software and drivers, the logged-in user must be an administrator and an Internet connection is required. Supported Windows versions: Windows XP, Vista, 7, 8, 10, 11 (versione 32 e 64 bit)

HEX editor reccomended

Where to buy

To purchase the EECLIP USB eeprom programmer go to www.minitools.com
