EECLIP USB
serial eeprom programmer
EECLIP is a serial eeprom programmer, which plugs into the PC’s USB 2.0 port and does not require an additional power supply.
Most serial eeproms (SPI, I2C OR IIC, Microwire) can be programmed with EECLIP, even eeproms with SOP8 package and adaptable cable.
It can be used with Windows XP, Windows Vista, Windows 7, Windows 10, Windows 11 both 32-bit and 64-bit versions, and can read and write the connected eeproms.
The software supports and automatically recognises more than 2000 different devices and automatically updates the EECLIP firmware.

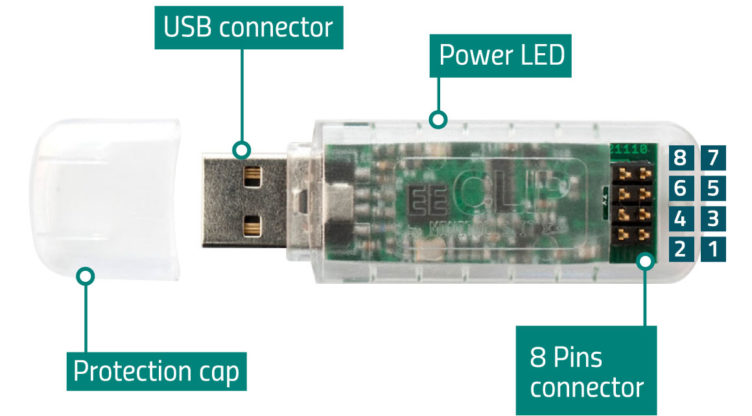

| Pin | Descripion |
|---|---|
|
1 |
Data out |
|
2 |
Write protect |
|
3 |
Chip select |
|
4 |
Grid |
|
5 |
Clock |
|
6 |
Pre |
|
7 |
Data in |
|
8 |
Vcc |
Features
Ease of use
you can read or write a memory in just 2 clicks.
Powering
no external power supply is required. The EECLIP programmer supports devices with 3V or 5V voltage.
Autodetect
the software is programmed to recognise automatically the device
Editor
you can use and connect to the EECLIP software most of the editing software (supporting .bin files) on the market (e.g. 010 Editor).
Connection cable
each cable is specific to a device category (e.g. with the 93 cable, one can operate SOP8 93xx devices with both 8 and 16 bits).
Software Update
the software is automatically updated via the Internet.
Supported devices
more than 2000 devices can be read and written in Autodetect functionality.
EECLIP software
Download and install EEClip Software
Name: EEClip
Version: 1.6
Manufacturer: Minitools
SystemRequirements
To install the EEClip software and drivers, the logged-in user must be an administrator and an Internet connection is required.
Supported Windows versions:
Windows XP, Vista, 7, 8, 10, 11 (versione 32 e 64 bit)
